East Side Access CQ031

Queens Bored Tunnels

Project Details

TUTOR PERINI AFFILIATES

Frontier-Kemper Constructors, Inc.
Prime Contractor
Contract Amount: $777 Million

OWNER
NYC Metropolitan Transportation Authority

LOCATION
New York, NY

ARCHITECT
GEC (PB/STV/Parsons)

SIZE
2 Miles

COMPLETION
2013

Project Description

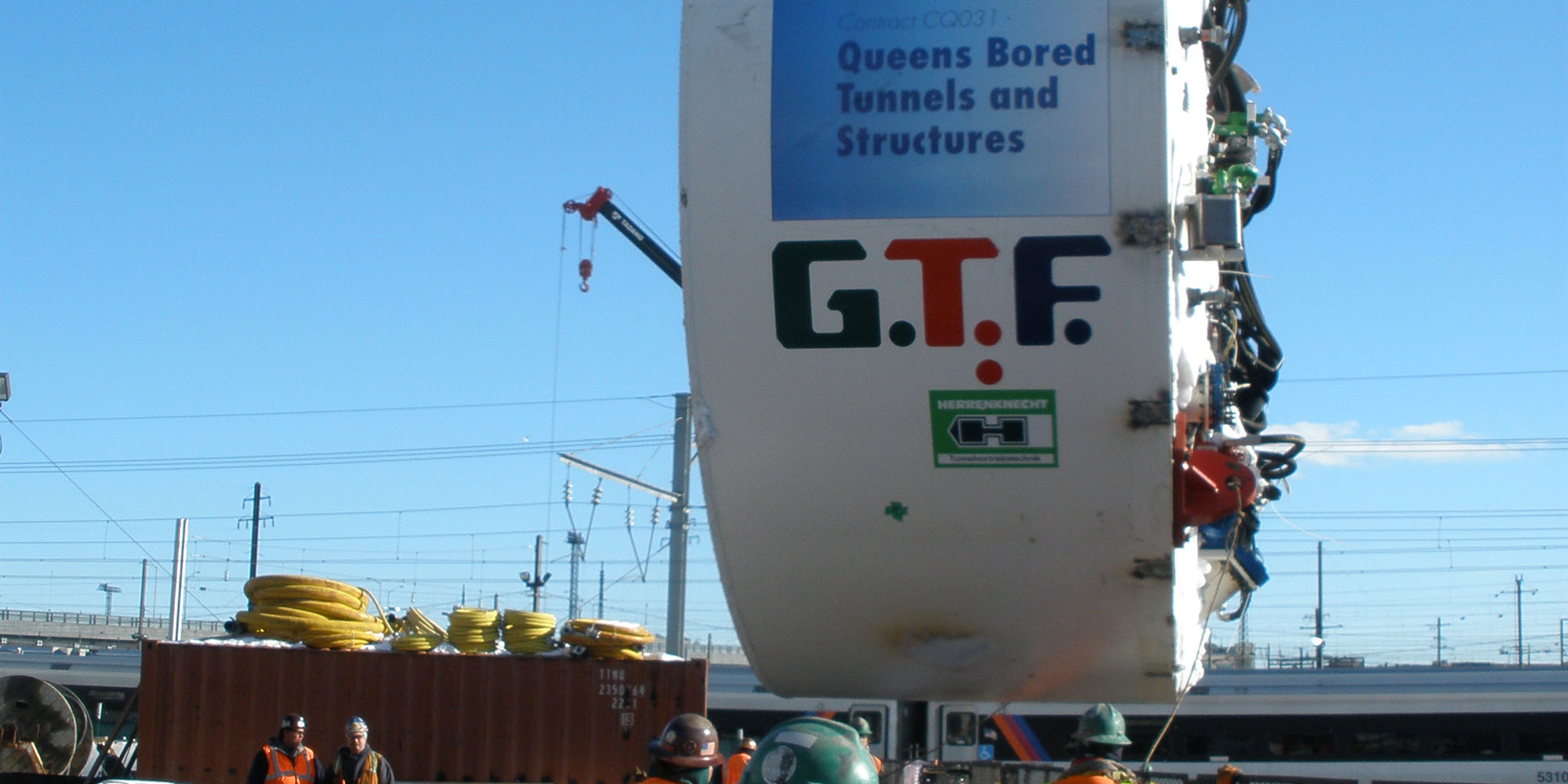

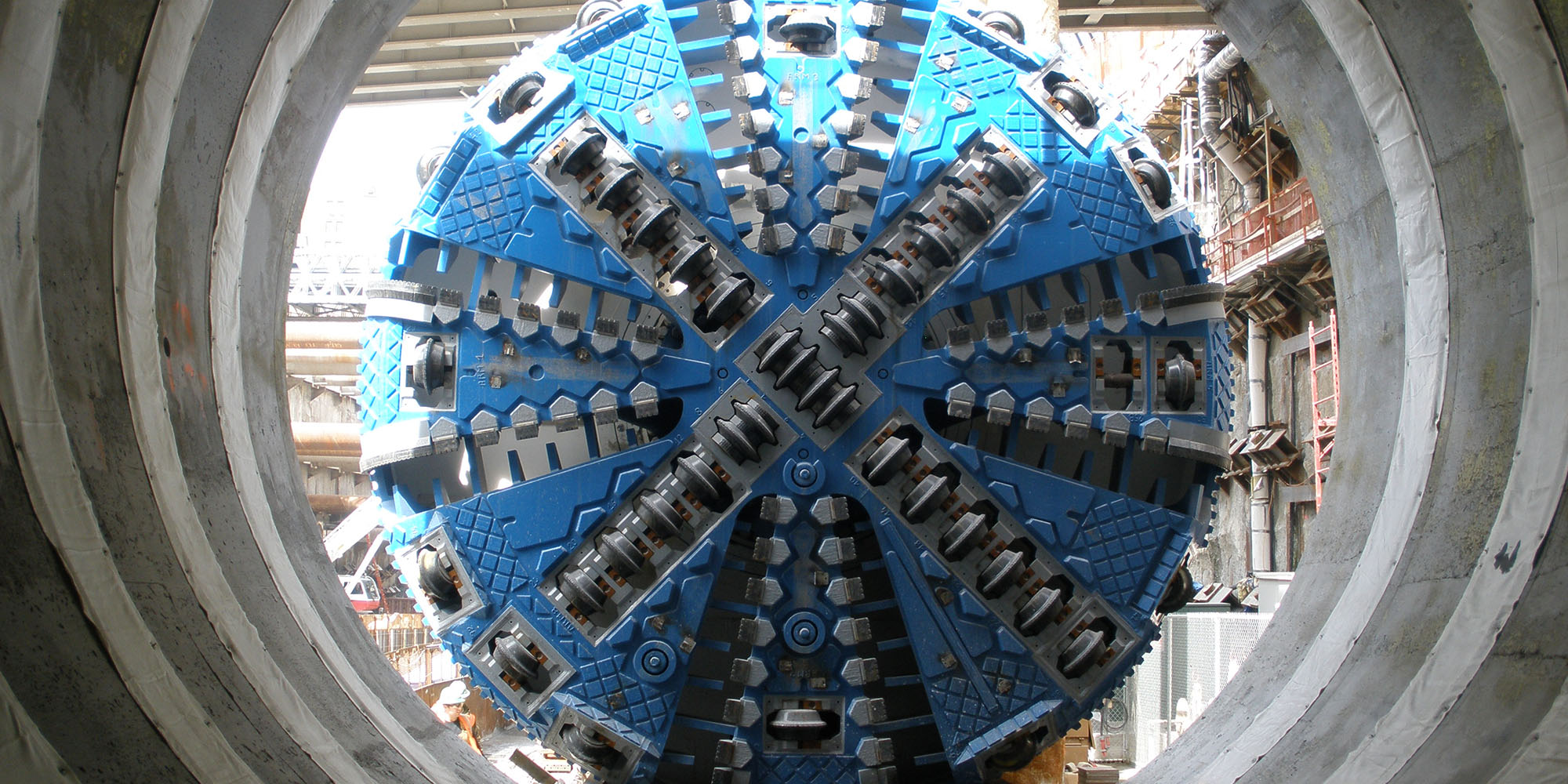

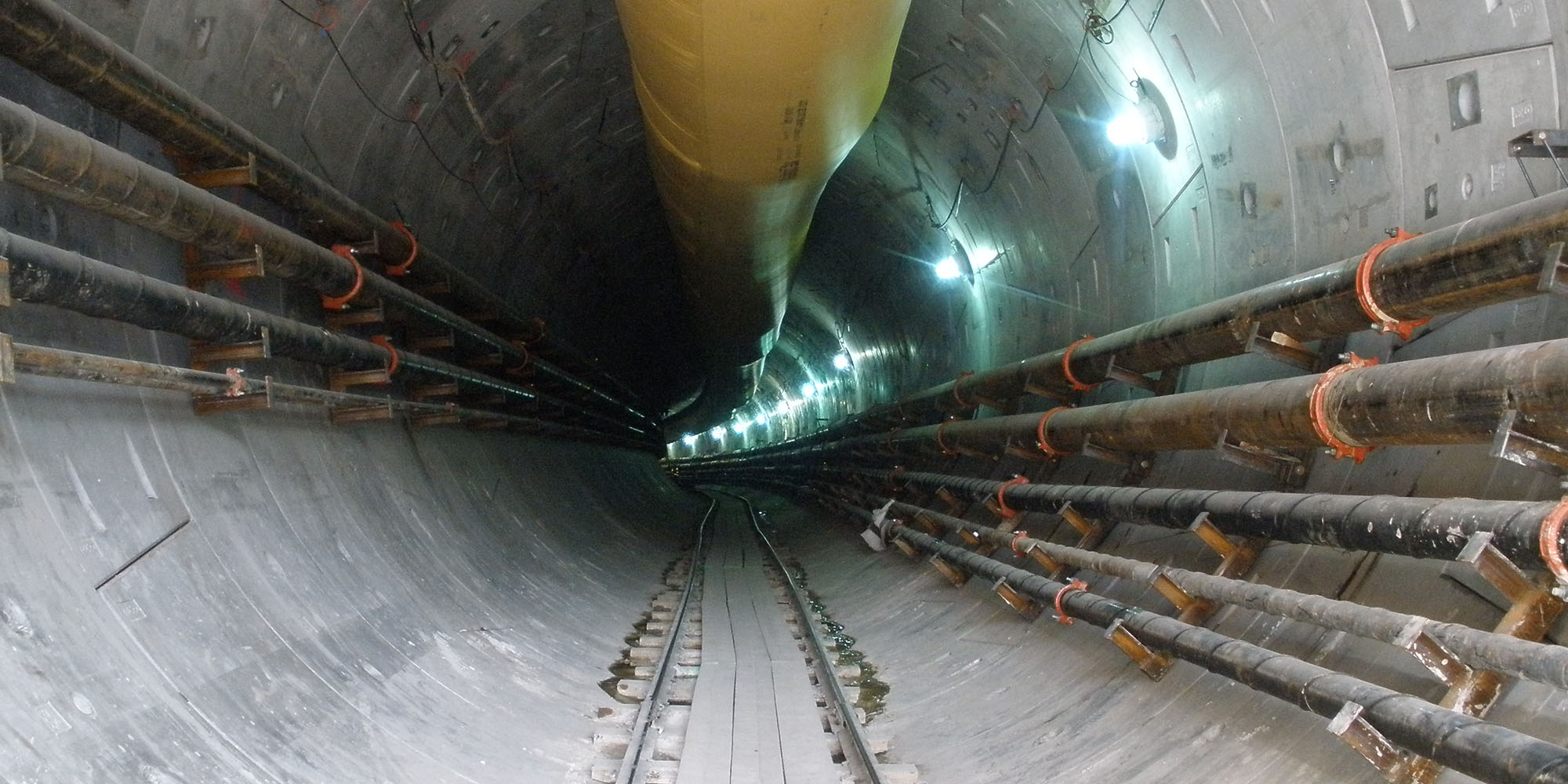

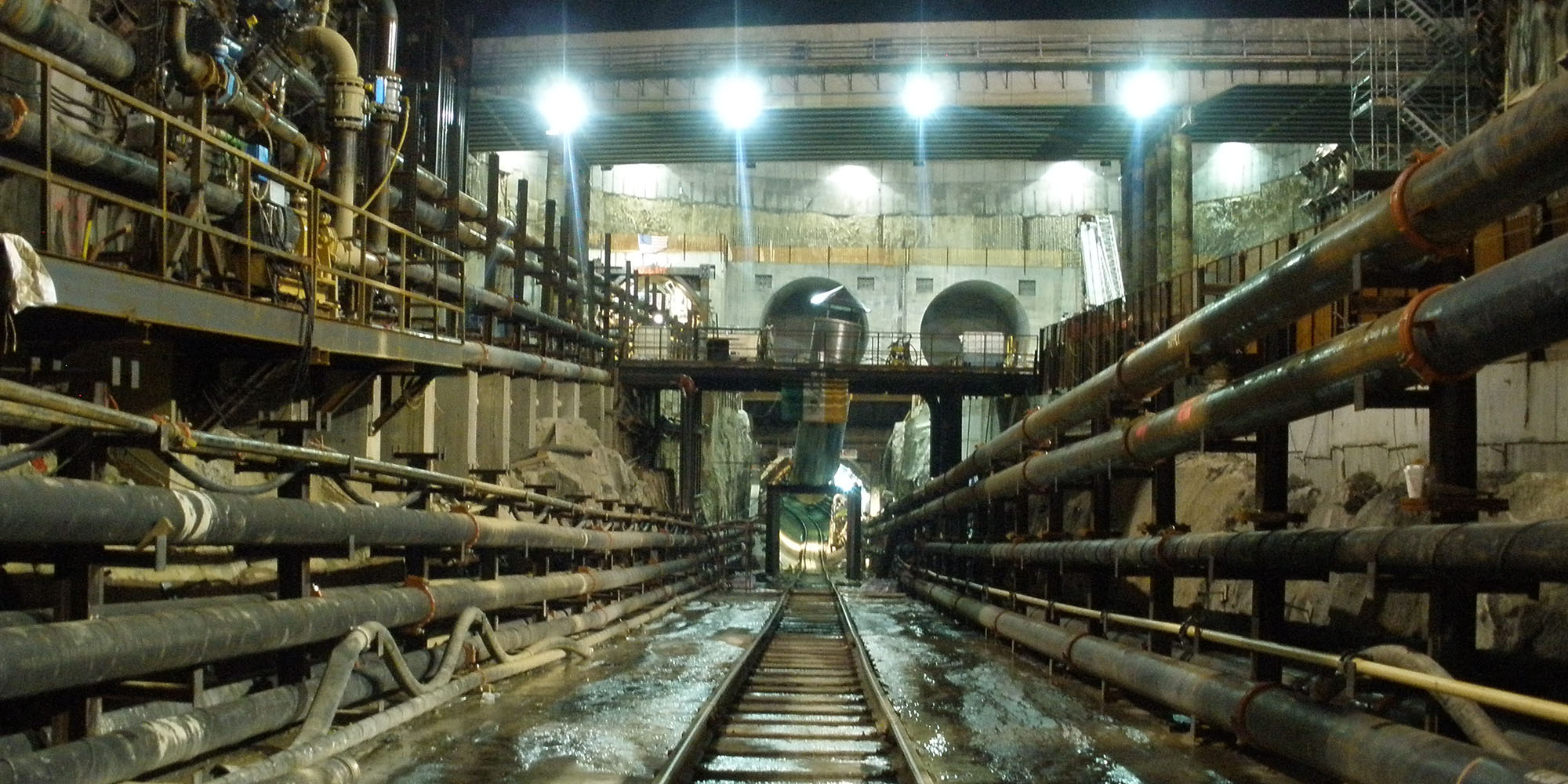

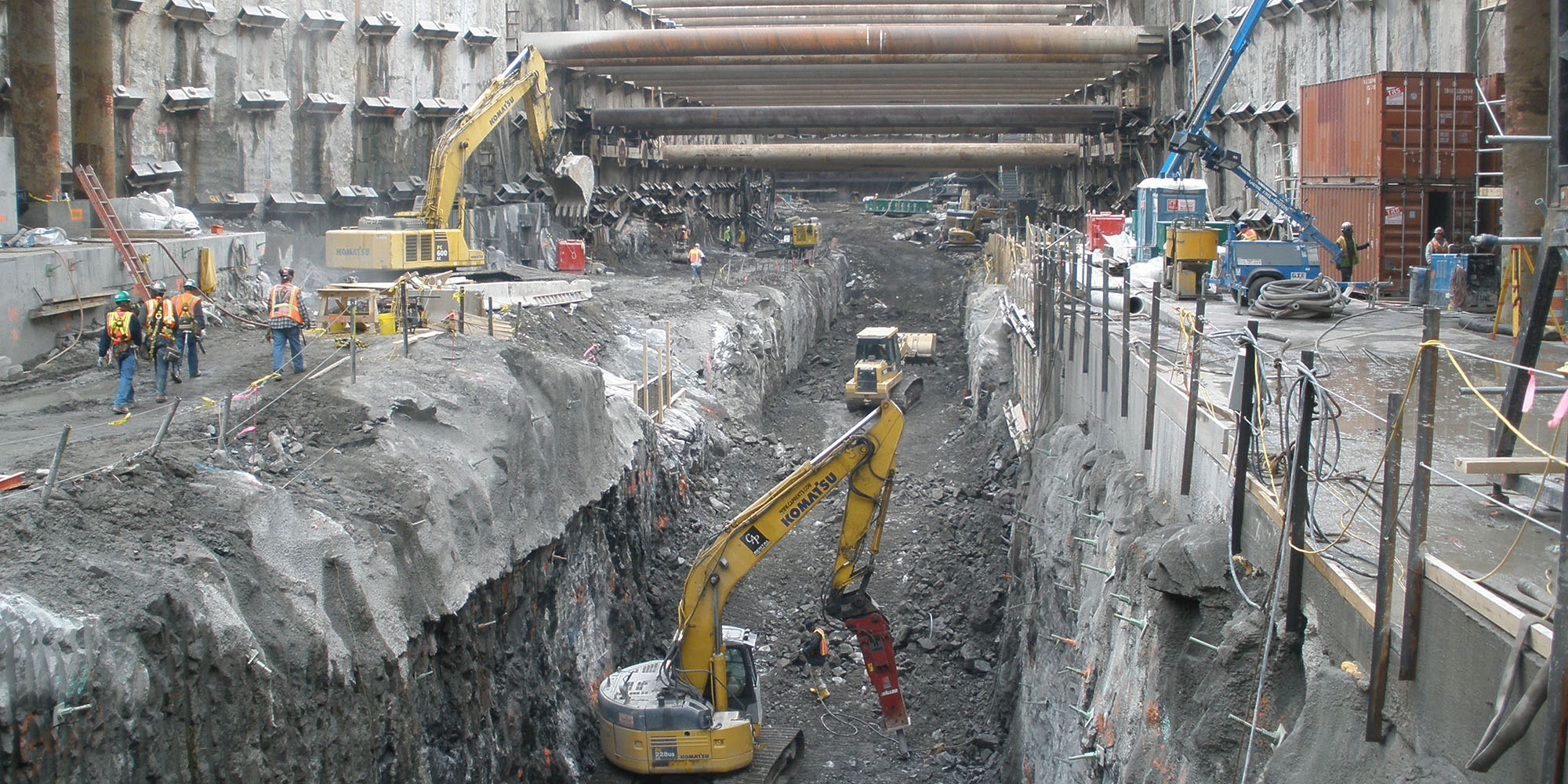

The Queens Tunnels are designed to bring Long Island Railroad (LIRR) trains into a new station located below Grand Central Terminal. The work included four 19.5-foot diameter tunnels with a combined length of 10,500 feet. Two soft ground slurry shields were used to construct the tunnels. The tunnels were lined with precast concrete segments. Also constructed were three shafts that include cross passages for emergency access and ventilation.
