East Side Access CH061A

Track A Cut and Cover Structure

Project Details

TUTOR PERINI AFFILIATES

Frontier-Kemper Constructors / Becho
Contractor
Contract Amount: $3 Million

OWNER
NYC Metropolitan Transportation Authority

LOCATION
New York, NY

ARCHITECT
GEC (PB/STV/Parsons)

COMPLETION
2017

Project Description

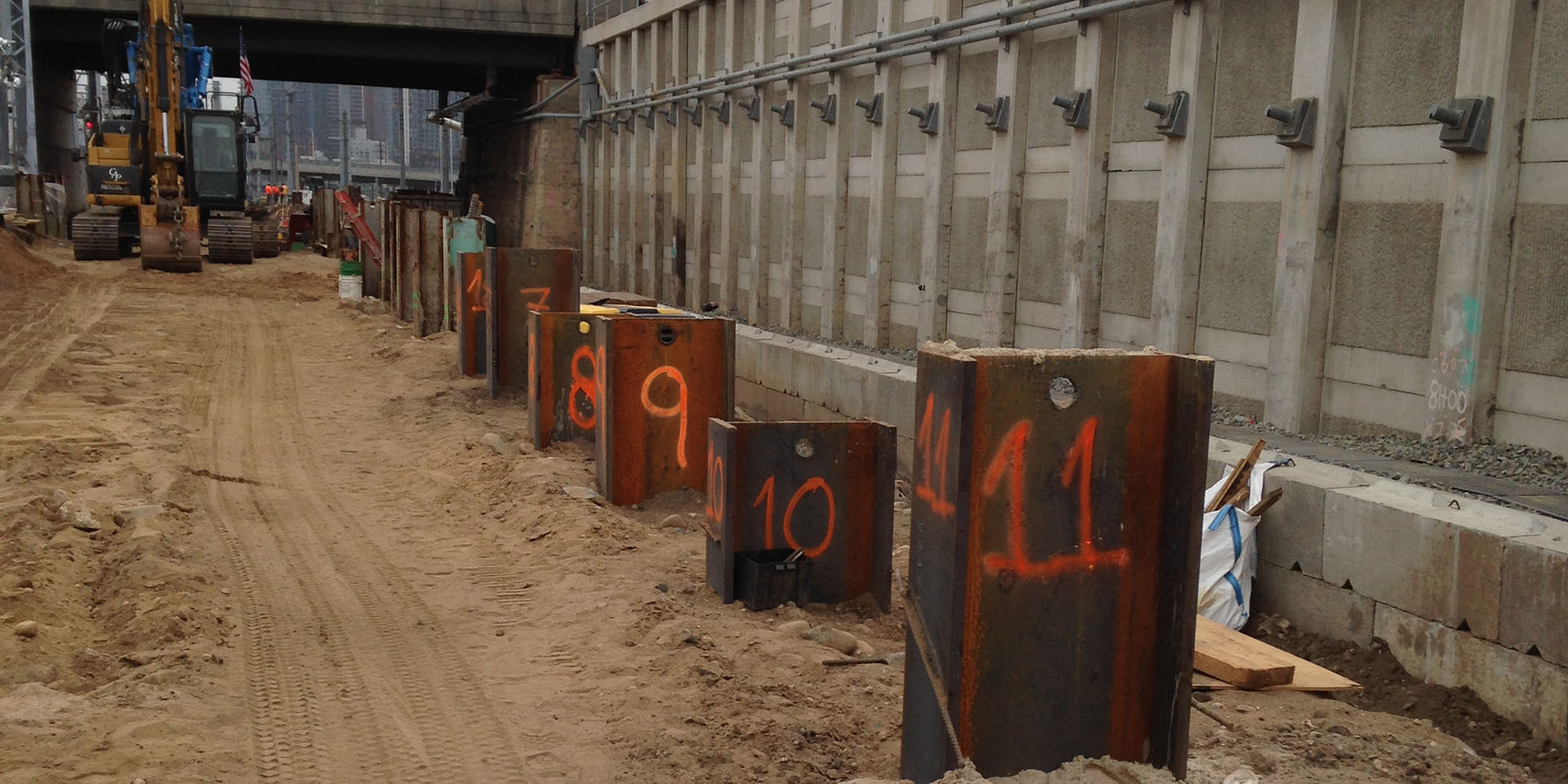

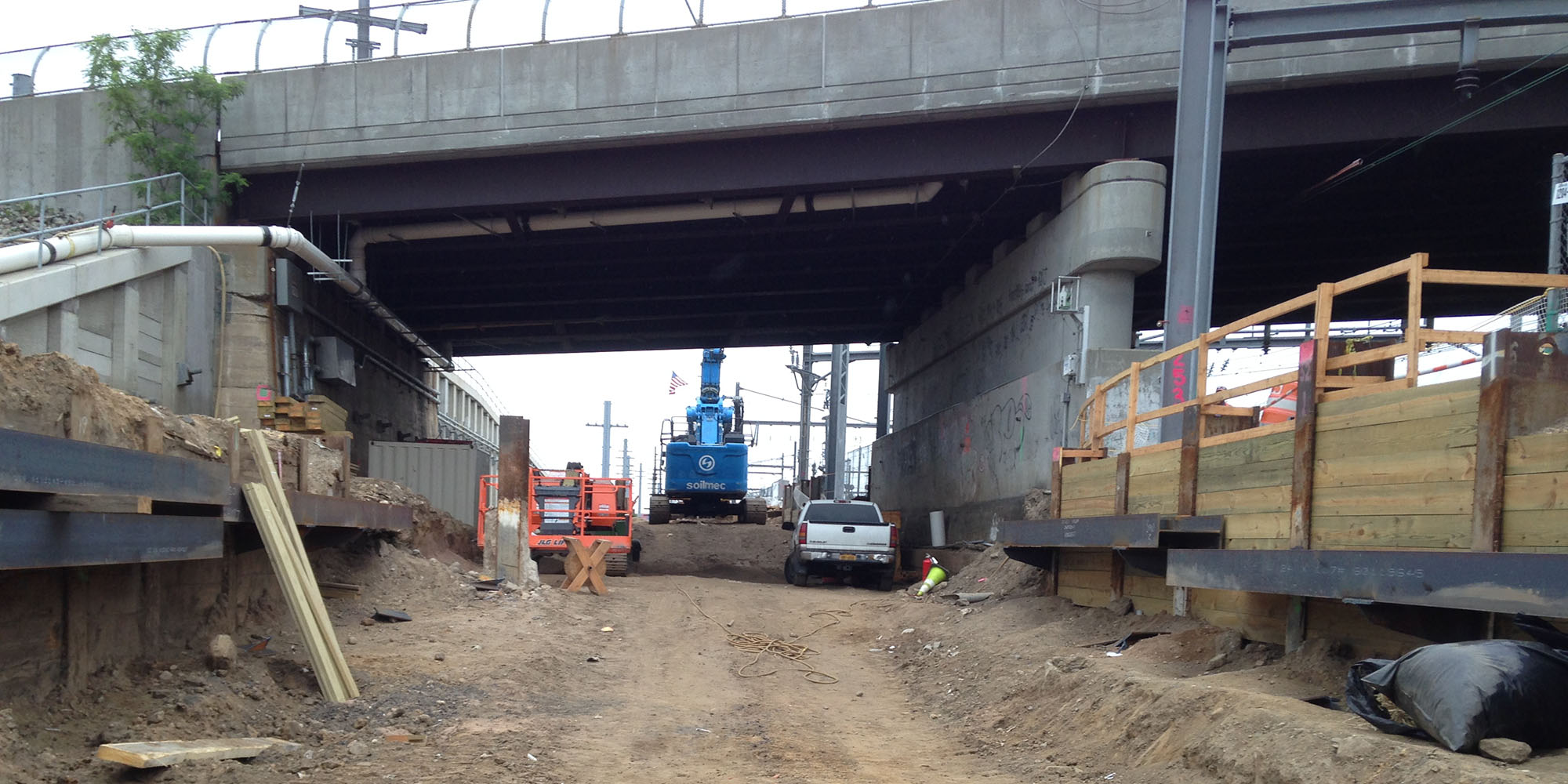

This phase of the East Side Access project is the construction of the Stage 3 civil structures at Harold Interlocking. The work includes 34 one-meter diameter primary secant piles under the bridge with low headroom, 32 one-meter diameter secondary secant piles under the bridge with low headroom, 18 one-meter diameter soldier piles, and 20 underpinning pits five feet x six feet x four feet.
