AAFB AEF FOL Aircraft Maintenance Hangar

Anderson Air Force Base

Project Details

TUTOR PERINI AFFILIATES

Black Construction Company
Design-Build Contractor
Contract Amount: $32 Million

OWNER
Department of the Navy

LOCATION
Andersen Air Force Base, Guam

SIZE
4,700 Square Meters

COMPLETION
2005

Project Description

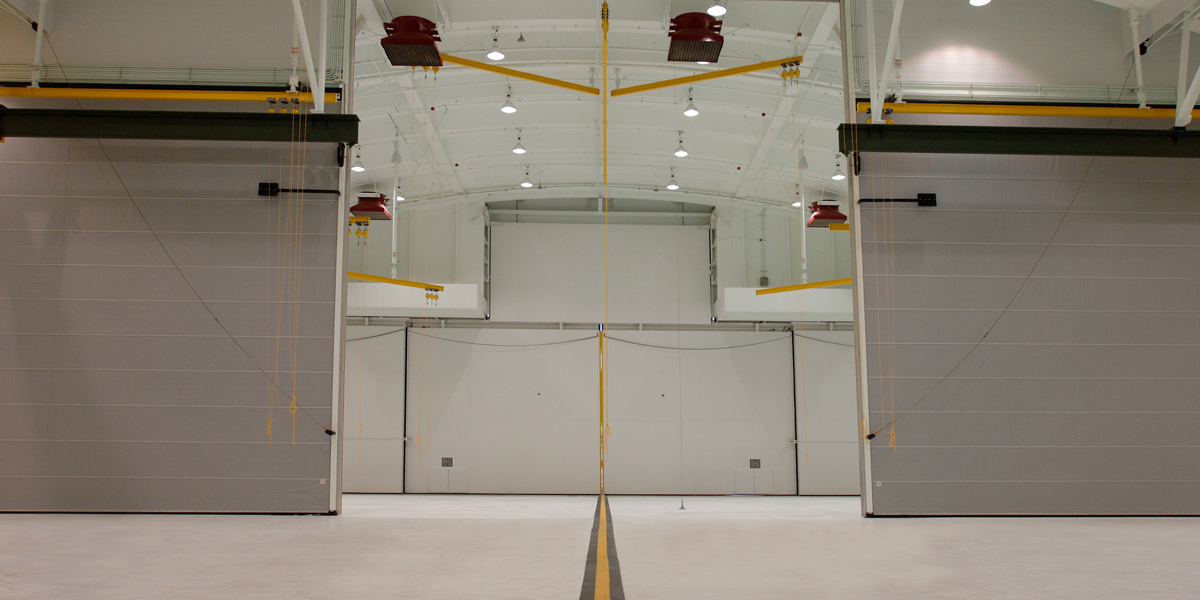

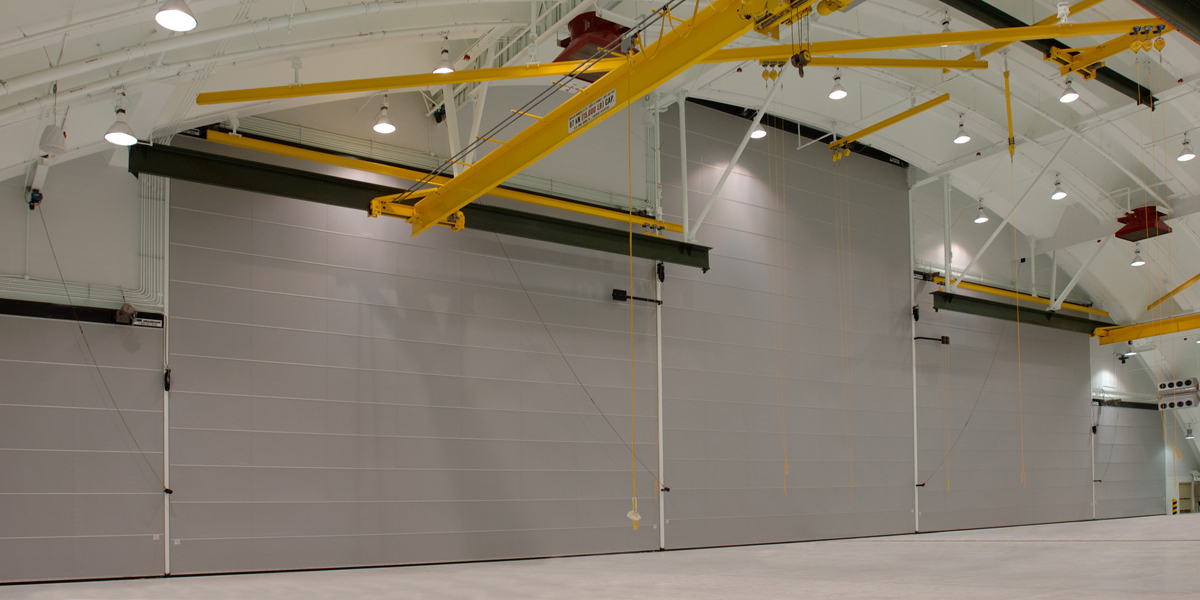

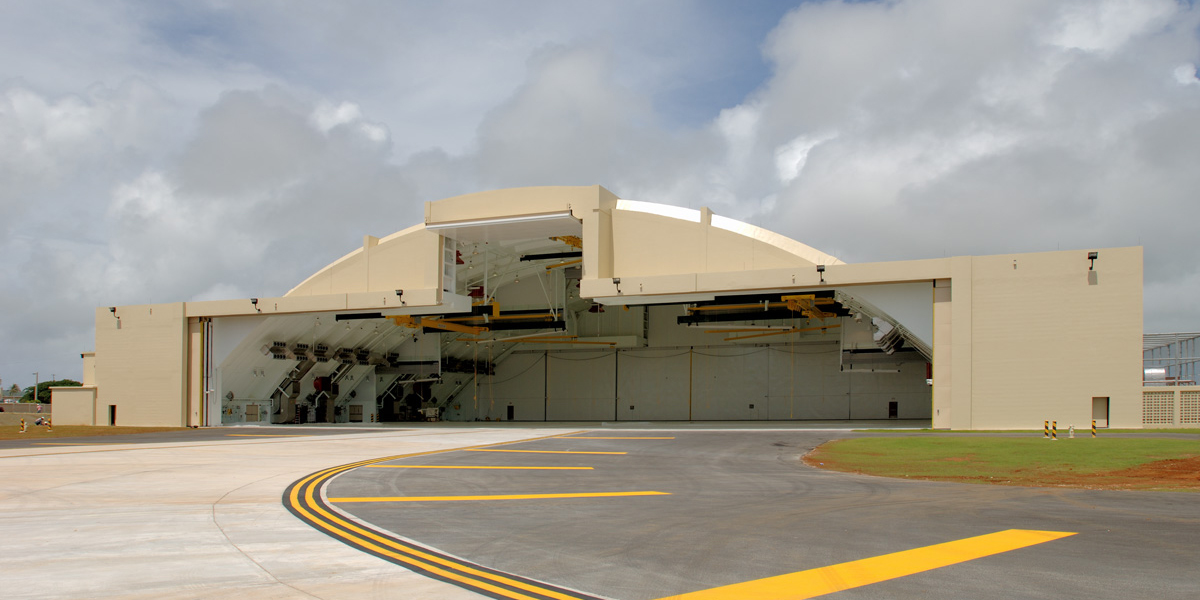

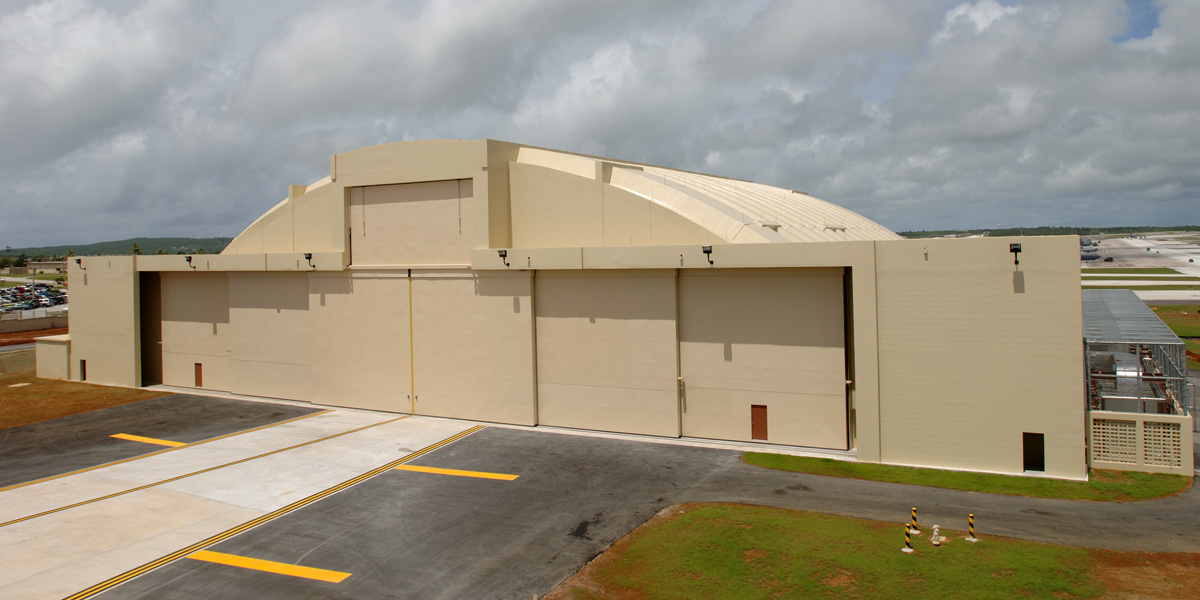

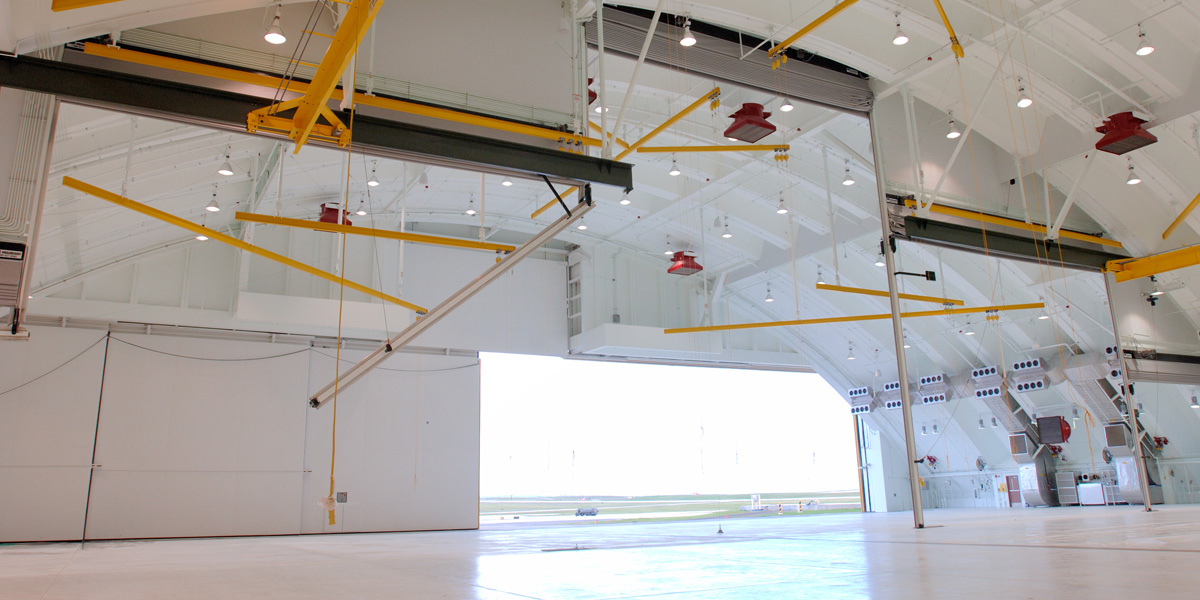

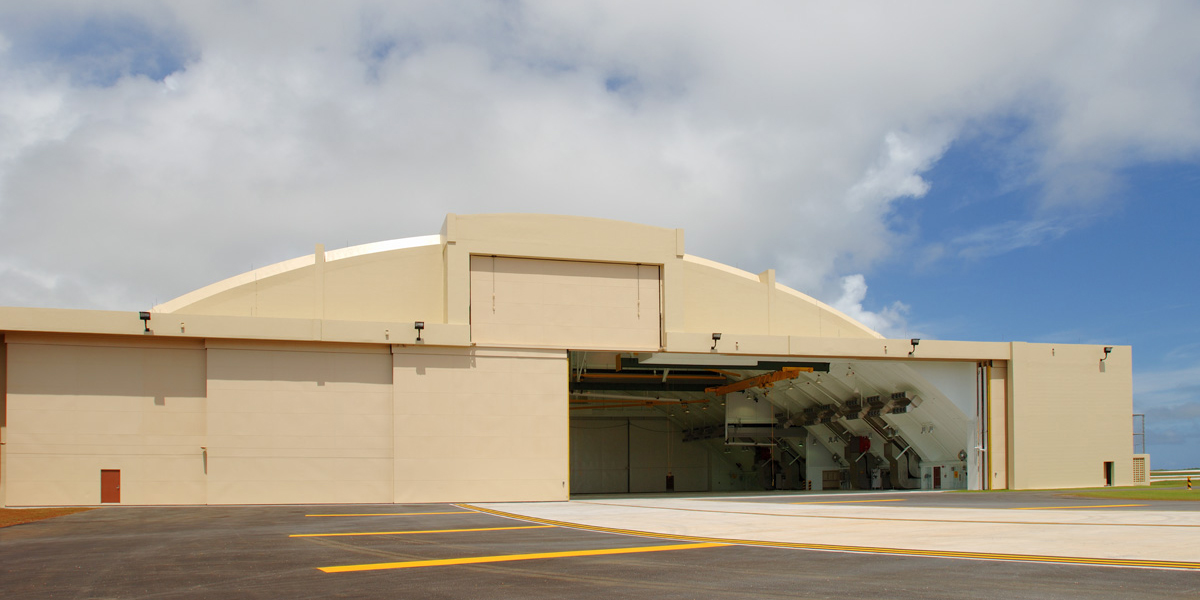

The project entails the construction of an-arch shaped, 4,700 square meter concrete aircraft maintenance hangar, related support facilities, concrete aircraft aprons, tow ways, and asphalt service road on a 50,000 square meter site at Andersen AFB, Guam. The hangar and related site improvements will provide a reliable shelter and an air-conditioned environment for B-2 and B-52 aircraft maintenance and support for “hard broke” B-1B, B-2, B-52, KC-135, F-22 aircrafts that can not be flown off island prior to a typhoon.

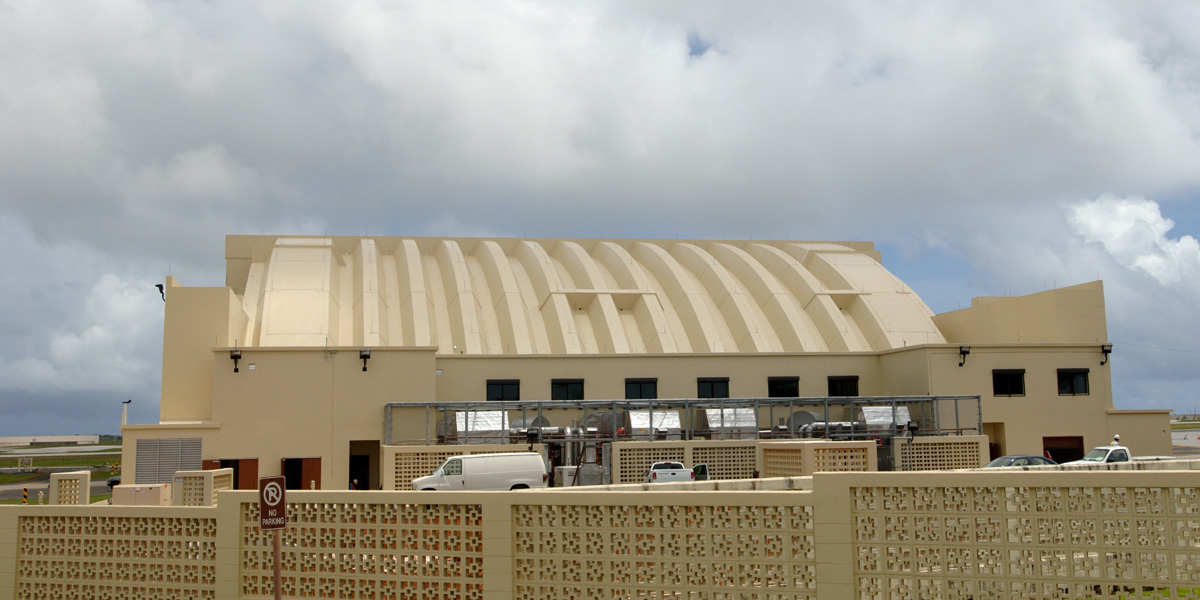

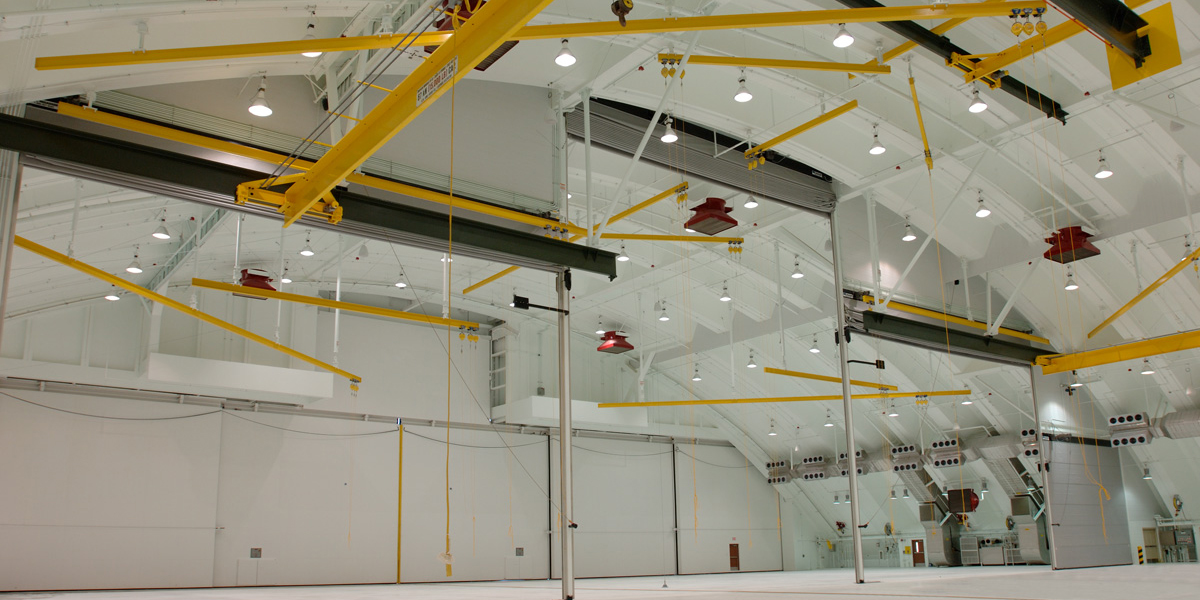

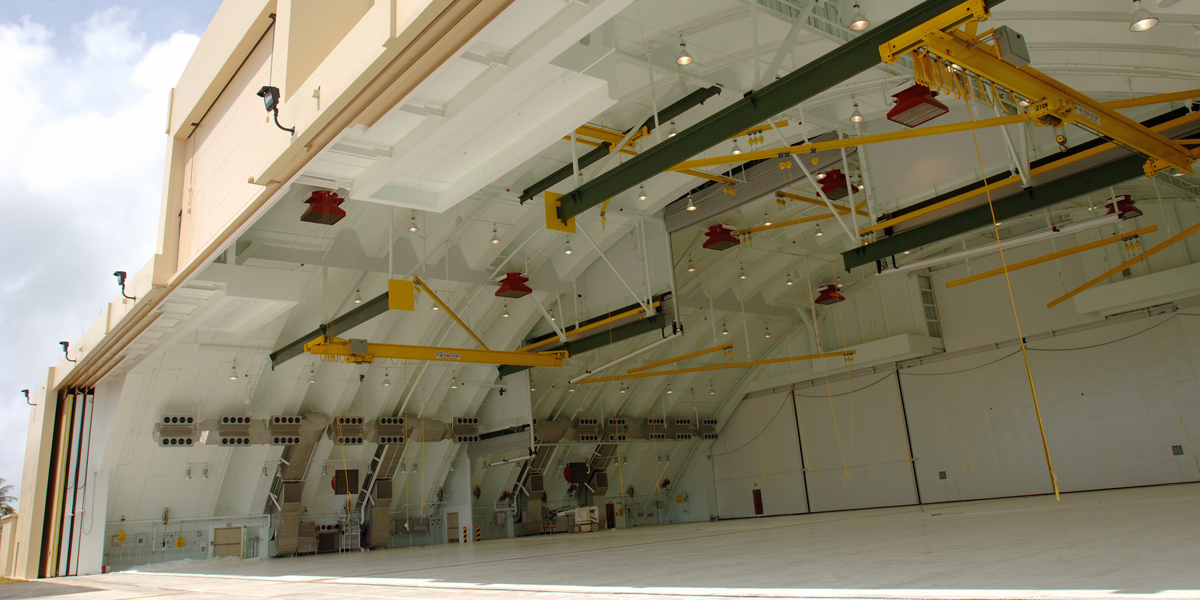

The main hangar structure will be 20 meters high at its peak and have a gross floor area of 3,600 square meters. The hangar will have a cast-in-place concrete foundation with post-tensioned grade beams and precast concrete wall and roof superstructure comprised of folded plate arch rib segments.  Adjacent single story and two story support structures housing open mechanical equipment yards, enclosed storage and equipment rooms, second floor mezzanine offices, and related facilities will be constructed of conventional cast-in-place and precast elements and will have a total gross area of 1,100 square meters. In all, approximately 800 metric tons of reinforcing steel and 9,500 cubic meters of concrete will be used to construct the hangar, building extensions, site civil works, concrete aprons and tow ways.



Awards

Award Winning Project Under Industrial Category 2005 - Guam Contractors Association
